8 Ton Fixed Hydraulic Dock Leveler – DCQG-8T
- 8-Ton Rated Load Capacity
- Three Platform Lengths Available
- 400 mm Upward / 300 mm Downward Travel
- 6 mm Platform & 14 mm Lip Checker Plate
- 1.1 kW Hydraulic Power Unit
Request a Quote
Enter the quantity you need and add to your quote list for pricing inquiries.
Description
8 Ton Fixed Dock Leveler for Warehouse Loading Bays
The DCQG-8T fixed hydraulic dock leveler is designed for permanent warehouse and logistics loading positions requiring an 8-ton rated load. This pit-mounted dock leveler is available in three equipment lengths. All listed versions are 2,000 mm wide and 600 mm high.
The platform provides 400 mm upward travel and 300 mm downward travel. A 6 mm checker-plate platform and 14 mm checker-plate lip are used across the DCQG-8T range.
DCQG-8T Key Specifications
- Rated load: 8 tons
- Available lengths: 2,000 mm, 2,500 mm, and 3,000 mm
- Equipment width: 2,000 mm
- Equipment height: 600 mm
- Upward / downward travel: 400 / 300 mm
- Platform plate: 6 mm checker plate
- Lip plate: 14 mm checker plate
- Power unit: 1.1 kW
- Standard power supply: Three-phase 380 V, 50/60 Hz

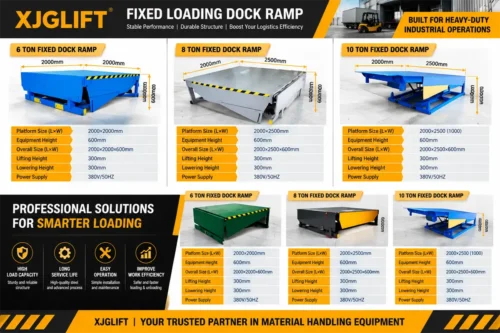

Available DCQG-8T Sizes
| Equipment Size (L × W × H) | Travel | Platform Cylinder | Platform / Lip Plate | Power Supply | Self-Weight |
|---|---|---|---|---|---|
| 2,000 × 2,000 × 600 mm | 400 / 300 mm | Single cylinder | 6 mm / 14 mm checker plate | 1.1 kW, 3-phase 380 V, 50/60 Hz | 600 / 624 kg |
| 2,500 × 2,000 × 600 mm | 400 / 300 mm | Single cylinder | 6 mm / 14 mm checker plate | 1.1 kW, 3-phase 380 V, 50/60 Hz | 700 / 718 kg |
| 3,000 × 2,000 × 600 mm | 400 / 300 mm | Dual cylinder | 6 mm / 14 mm checker plate | 1.1 kW, 3-phase 380 V, 50/60 Hz | 808 kg |
For rows with paired self-weight values, the figures are listed for the steel-plate and rectangular-tube versions respectively.

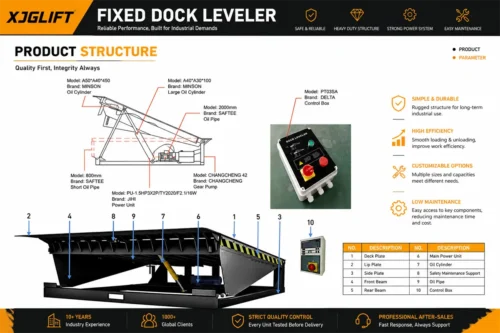

Platform Construction and Power Supply
Platform Configuration
- Eight U-shaped main beams
- 6 mm checker-plate platform
- 14 mm checker-plate lip
- Single platform cylinder on the 2,000 mm and 2,500 mm versions
- Dual platform cylinders on the 3,000 mm version
Standard Power Configuration
- 1.1 kW power unit
- Three-phase 380 V
- 50 Hz or 60 Hz
- Five-year warranty for the standard hydraulic power unit
Available DCQG-8T Options
- Single-phase 220 V power
- 1.1 kW CT4 explosion-proof configuration
- Dual platform cylinders
- Intelligent electrical control box
- Dust brushes
- Wireless remote control
- Custom color
- Explosion-proof valve for a single- or dual-cylinder configuration
- Upgrade from a 14 mm lip plate to a 16 mm lip plate
- Vehicle restraint
- Brevini self-pressure-relief configuration, with or without valve
- Bucher self-pressure-relief configuration, with or without valve
- Solenoid valve
- Combined manual and electric operation
How to Select an 8 Ton Warehouse Dock Leveler
Before ordering a fixed dock leveller, confirm the available installation space, loading-bay height, vehicle-bed height range, planned pit dimensions, and site power supply. Choose the equipment length according to the project dimensions and confirm all civil measurements with the supplier before preparing the pit.
For model confirmation and a quotation, provide:
- Required equipment size
- Loading-bay and vehicle-bed heights
- Available installation space and planned pit dimensions
- Site voltage and frequency
- Required options
- Loading-area photos or drawings, when available
Typical Applications
The DCQG-8T hydraulic loading dock leveler is intended for permanent loading positions in warehouses, factories, logistics centers, distribution facilities, and other truck-loading areas requiring an 8-ton rated load.
FAQ
8 Ton Fixed Dock Leveler FAQ
What sizes are available for the DCQG-8T?
The listed sizes are 2,000 × 2,000 × 600 mm, 2,500 × 2,000 × 600 mm, and 3,000 × 2,000 × 600 mm.
What is the travel range?
Every listed DCQG-8T version has 400 mm upward travel and 300 mm downward travel.
What power supply does the DCQG-8T use?
The standard configuration uses a 1.1 kW power unit with three-phase 380 V power at 50/60 Hz. Single-phase 220 V is listed as an option.
Can the 14 mm lip plate be upgraded?
Yes. An upgrade from the standard 14 mm lip plate to a 16 mm lip plate is listed as an option.
Are custom sizes available?
Custom dimensions require confirmation with the supplier.
Request a DCQG-8T Quote
Send your required equipment size, loading-bay dimensions, vehicle-bed height range, site voltage, frequency, and selected options. We will confirm the DCQG-8T configuration for your project.
Compare this model with the 10 ton fixed hydraulic dock leveler, or return to the fixed dock leveler category.
